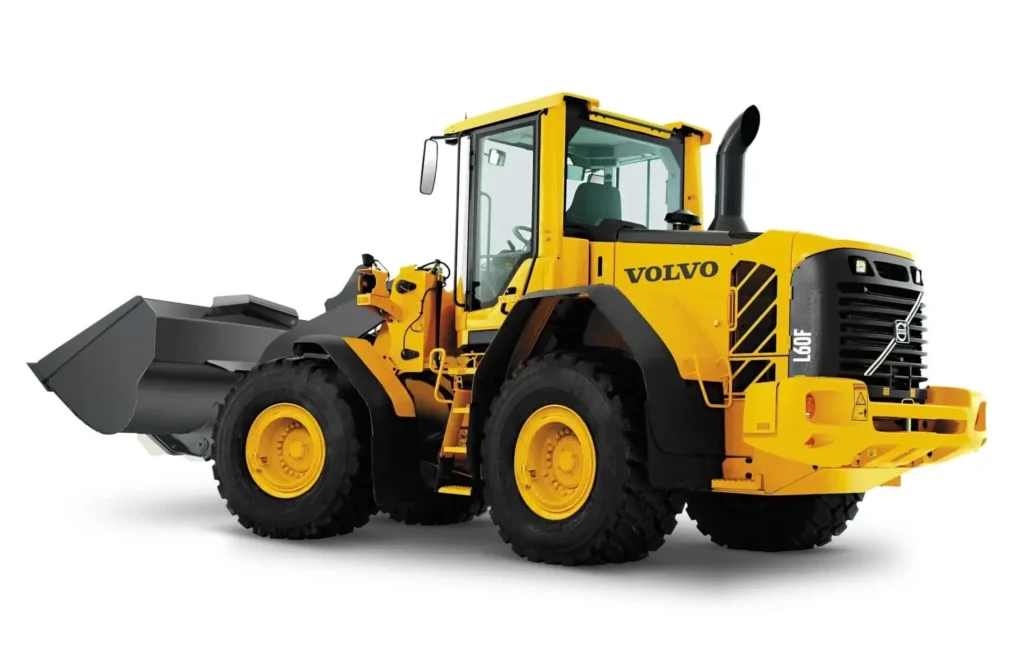

Volvo L60F Wheel Loader
VOLVO Wheel Loader
L60F
Operating
Weight (kg)
11,000 – 12,300
Bucket
capacity (m³)
1.6 – 5
Static tipping load
at full turn (kg)
7,150
The Volvo L60F Wheel Loader was engineered to provide your business with a first-class wheel loader that can take your productivity to the next level. Volvo’s L60F Wheel Loader has an innovative engine, a superior Automatic Power Shift (APS) transmission, and an ergonomic operator cab.
Additional Information
The innovative low-emission engine guarantees quiet operations while also minimizing environmental impact. It also ensures lower fuel consumption without compromising the unit’s rimpull.
The Automatic Power Shift helps businesses speed up their work cycles without hurting your team’s effectivity. Volvo’s APS will intuitively adjust according to the machine’s speed and engine RPM.
Each Volvo L60F is equipped with the world-class Volvo wet, circulation-cooled disk brakes. This component helps increase your unit’s operating life while providing smooth braking motions for your drivers.
The patented Volvo lift arm system TP-linkage ensures precise movement while maintaining high breakout torque, maximum power, and parallel movements for every lifting job.
|
Parameters |
|
|---|---|
|
Static tipping load at full turn: |
7,150 kg |
|
Bucket capacity |
1.6 – 5 m³ |
|
Log grapples |
0.7 – 1.3 m² |
|
Operating weight |
11,000 – 12,300 kg |
|
Breakout force |
84.2 kN |
|
Engine |
Volvo D6E |
|
Max power at |
1,700 rpm |
|
…SAE J1995 gross |
115 kW |
|
…ISO 9249, SAE J1349 net |
114 kW |
|
Max torque at |
1,600 rpm |
|
…SAE J1995 gross |
680 Nm |
|
…ISO 9249, SAE J1349 net |
648 Nm |
|
Tires |
20.5 R25, 600/65 R25, 17.5 R25 |
